Precise structural features of automatic edge banding machine
The automatic edge banding machine is mainly used for edge banding of panel furniture.It has the characteristics of automation,high efficiency,high precision and beautiful appearance.It has been widely used in domestic panel furniture manufacturers.

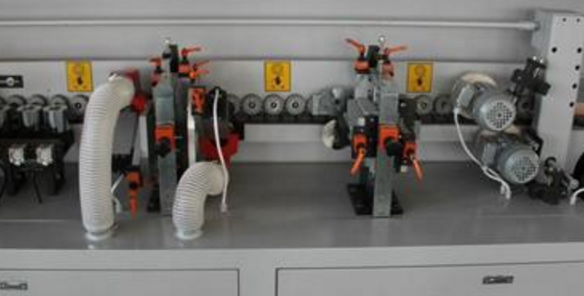

Mainly includes the fuselage,various processing department groups,and control systems.The machined parts mainly include:pre-milling,gluing,edge banding,head,rough trimming,fine trimming,copy tracking,scraping,polishing,grooving.Mainly used for edge banding of panel furniture.It has the characteristics of automation,high efficiency,high precision and beautiful appearance.It has been widely used in domestic panel furniture manufacturers.
1.The main part of the automatic edge banding machine,the most important part related to the accuracy is the upper and lower beams,because it is related to the processing of the plate,it can run in a straight line to ensure that each processing unit can work normally.It is mainly divided into two types of beams:the first:aluminum alloy material,single-pull casting,and the second:cast iron beams.
Among them,the aluminum alloy beam is a more advanced method,because the precision and straightness are far better than cast iron.
Second,it is the key part of the fuselage,the fuselage base.The advanced method is steel sheet laser cutting,welding.The advantage is that the fuselage is firm and not deformed,thereby improving the stability of the whole machine.
3.The main manufacturers of CNC modules can design independently,most of them have applied for patent protection,and the feeding speed has reached the advanced level abroad.Today's more advanced PLCs include LG series,Siemens series,etc.
Fourth,the organizational structure is basically similar.It can be added or subtracted according to actual processing requirements.Among them,copy tracking has the highest technical difficulty.Although the machining technology guarantees the accuracy of the parts,due to the need for PLC to precisely control the action and cutting amount,and copy the angle,only a few large factories in China have relatively mature copy tracking.
Through continuous technical accumulation and visits and investigations of home furnishing factories, we give full play to our technological advantages, dig deep into the shortcomings and deficiencies of traditional equipment, and combine precision manufacturing with intelligence to provide a complete overall solution for customized home furnishing.
